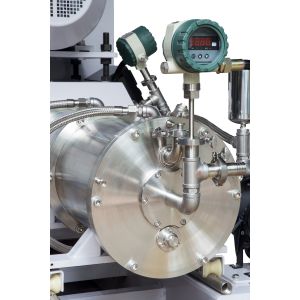

Non Explosion Durable Disk Disc Universal Grinder Horizontal Bead Mill Machine​

The main introduction:

This sand/bead mill machines mainly consists of 6 systems:

• driving system
• input system
• grinding system
• cooling system
• barrel and output system
• lubrication system

The double end mechanical sealing with independent technology could resist more than 1600 kinds of solvents.

The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .

The cooling efficiency is better because of highly effective heat rejection for sectional double spiral water course

The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency. The materials of contact parts could be choosen from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

The Technical Data:

The Configuration instructions:

No	Main parts	SP series non explosion-proof	Notes
1	Material of External vessel	SUS 304 stainless steel
2	Material of Inner grinding vessel	9Cr18Mo Alloy Steel, SUS 304 stainless steel
3	Material of Dispersing shaft	40Cr with hard chromium plating	Brand: NSK
4	Material of Dispersing disk (agitator disk)	SUS 304 stainless steel, PU coated with SUS 304 stainless steel	choosen according to different applications
5	Feeding and discharging end covers on the cylinder	SUS 304 stainless steel
6	Static discharge screen ring	Wire Wound screen ring with 304.Gaps: 0.5mm.
7	Mechanical seal	Intelligent double mechanical seal with mandatory screwing-cooling system
8	Feeding pump	1” / 1.5"ARO diaphragm pump	IngersoII Rand
9	Appliance configuration	non explosion-proof motor, motor power 30 / 37 / 55kW. other non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts.
10	Control system	button type column or PLC

The Production show :

Different grinding structures and materials

The packing (firstly anti-abrasion film and then packed in wooden boxes)

The related products:

The zirconia bead from 0.3-3.0mm

FAQ:

Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer.

Q2: Where is your company and factory located? How can I visit you?

A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!

Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

Q4: What is your after-sale service?

A4: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.

If need more detailed information, please don't hesitate contact us, Also Warmly welcome to visit us.

Allwin Machine & Equipment Co., Ltd. is a Chinese national high-tech enterprise and specialized manufacturer of wet grinding, dispersing equipment, and production lines. Established in 1993 in Chongqing, China, we have been certified with ISO9001:2015.

With 30 years of industry experience, Allwin is committed to helping providing customers with full-process services from construction planning, product supply, to providing complete production lines, personnel training, and lifelong maintenance services.

Allwin specializes in the research and production of bead mills, mixers, dissolvers, customized production lines, tanks, and zirconia beads, with 30 years of industry experience and proficient in wet grinding core technology. We have sold more than 10,000 devices, serving 180 cities in China and exporting products to multiple countries.

Our customer base mainly covers Battery, Ceramics, Nanomaterials, Coatings, MLCC/LTCC, Pharmaceuticals, Food, Titanium dioxide, Personal Care, Papermaking, Inks, Pesticides, Graphene, Metallic and Non-metallic Minerals and more.

We have a professional R&D team, After-Sales Service team, Process Production department, run a Product Lifecycle Management (PLM) system. Our equipment is excellent, from materials to parts are all produced by CNC. The quality characteristics of our products are stable, reliable, interchangeable well, Precise, low noise, and long life. As a manufacturer, we comply with the ISO9001 standard strictly.
