PLC Optioal Disk Type Wet Grinding Horizontal Sand Mill for Coating Painting Ink

The main introduction:

This bead mills mainly consist of chamber and disc dispersing system. The particular mechanical sealing could be resistant to more than 1600 kinds of solvents. The series have great flow rate and super fine discharging, the finally fineness 1um can be reached .The cooling efficiency is better because the sectional double spiral water course is more helpful to reject the heat . Because of the combined disperser, the grinding efficiency is higher 15-30% . Wearable steel, stainless steel, PU and ceramics could be available to satisfy with different requirements.

Our horizontal sand mills are widely used in coating and paint, pigment, pesticide and agro-chemical industry,pigment and dyestuffs, printing inks, gravure inks, food and food processing,non-metallic minerals.

The Configuration instructions:

1. Outer chamber materials: 304 stainless steel

2. Inner Chamber materials: choose what you need from SUS304, wearable steel, ceramics, PU,or others

3 .Dispersing shaft: 40Cr with hard chromium plating

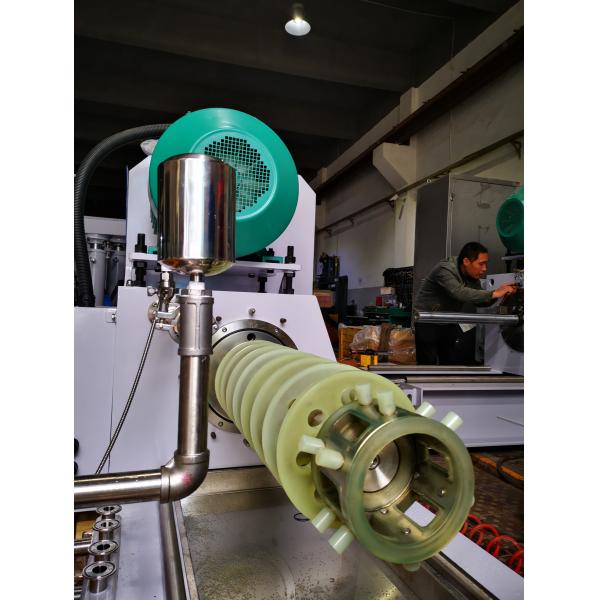

4. Dispersing disk: wearable steel, sus304, GCr15, PU coated with sus304

5. Feeding and discharging end covers on the cylinder: 304 stainless steel

6. grinding separator types: disc type, pin type, or combined type

7. Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.

8. Mechanical seal: particlular double mechanical seal

9. Feeding pump: G1/2”,G1“,G1.5” ARO diaphragm pump;(brand: Ingorsoll Rand)

10. Appliance configuration:( Non )Explosion-proof machine, suitable for water or oil based materials. (Non) Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts.

11.Operation Control (colum type) or PLC for optional

12. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.

The Production show :

The After Sales Service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.

The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then sea shipping by FCL or LCL.

If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.

•


Allwin Machine & Equipment Co., Ltd. is a Chinese national high-tech enterprise and specialized manufacturer of wet grinding, dispersing equipment, and production lines. Established in 1993 in Chongqing, China, we have been certified with ISO9001:2015.

With 30 years of industry experience, Allwin is committed to helping providing customers with full-process services from construction planning, product supply, to providing complete production lines, personnel training, and lifelong maintenance services.

Allwin specializes in the research and production of bead mills, mixers, dissolvers, customized production lines, tanks, and zirconia beads, with 30 years of industry experience and proficient in wet grinding core technology. We have sold more than 10,000 devices, serving 180 cities in China and exporting products to multiple countries.

Our customer base mainly covers Battery, Ceramics, Nanomaterials, Coatings, MLCC/LTCC, Pharmaceuticals, Food, Titanium dioxide, Personal Care, Papermaking, Inks, Pesticides, Graphene, Metallic and Non-metallic Minerals and more.

We have a professional R&D team, After-Sales Service team, Process Production department, run a Product Lifecycle Management (PLM) system. Our equipment is excellent, from materials to parts are all produced by CNC. The quality characteristics of our products are stable, reliable, interchangeable well, Precise, low noise, and long life. As a manufacturer, we comply with the ISO9001 standard strictly.

Allwin workshop:

Allwin Service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

R & D Team：

1. Allwin has been authorized with more than 11 patents and established cooperation with universities. Allwin has more than 12 engineers for Design and optimizing.
2. Whole production solution: Allwin can offer the Whole production solution for you, from Dispersing to grinding, from accessories to grinding media.

Sales Team:

      Allwin have professional sales team for you, before order we will recommand the suitable mills for your according to your requiriments and materials characteristics.

Quality Team:

       Allwin have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Production Team:

•      Advanced machining center and skilled operators.
